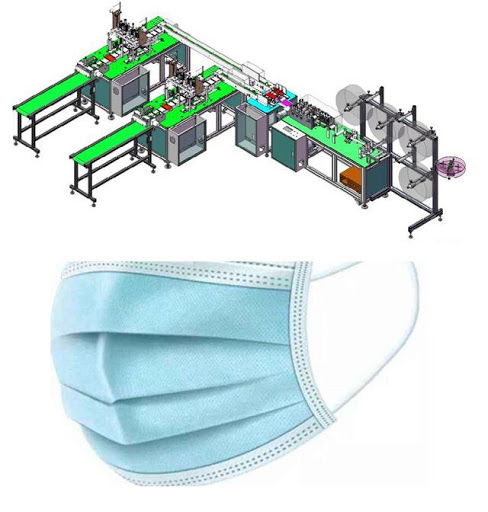

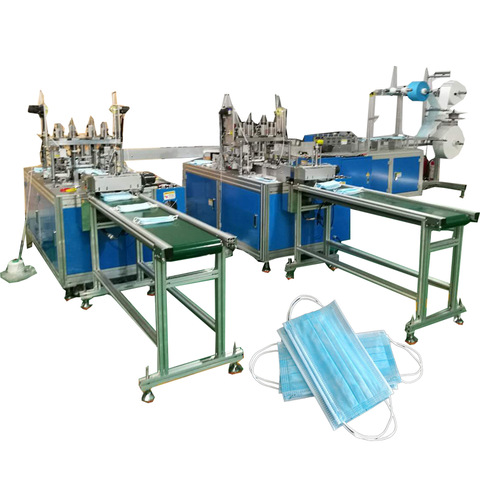

ULTRASONIC MASK PRODUCTION MACHINE
About Ultrasonic Masks Surgical face masks are made from non-woven fabric with better bacteria filter and air permeability while remaining less slippery than woven fabric. The most commonly used material to make them is polypropylene, which is 20 or 25 grams (gsm) per square meter in density.
Masks can also be made of polystyrene, polycarbonate, polyethylene or polyester. Non-woven flat face mask is one of the most widely used varieties in our daily work. The structure of the non-woven face mask is divided into three parts.
The outer layer made of this PP spun nonwoven fabric, PP melt blown nonwoven fabric and activated carbon nonwoven fabric is used as a filter in the intermediate layer. The inner layer is made of PP spunbond nonwoven fabric, or ES nonwoven fabric, etc. makes.
The function of the medical non-woven mask is to prevent mutual infection between medical staff and patients in the medical process. Usually, the mask should be soft, have good air permeability, barrier and filter for pathogens and dust.
Surgical face masks are usually made from spunbonded nonwoven fabric, PP meltblown nonwoven fabric, composite nonwoven fabric, or composite fabric with meltblown fabric as intermediate layer. The filtering effect of the surgical face mask should be more than 90% or even higher to prevent infection.
Material properties of medical non-woven face mask High strength, high temperature resistance (long term use at 150 C), anti-aging, ultraviolet resistance, high stretch, good stability and breathability, corrosion resistance, sound insulation, mothproof, non-toxic.
The scope of application of medical face masks: According to the standards and important technical requirements of various medical face masks, medical protective face masks are suitable for the protection of medical personnel and related personnel against airborne respiratory infection diseases with high level of protection. Medical face masks are suitable for the basic protection of medical staff or related personnel, as well as to prevent blood, body fluids and splashes during invasive work.
The protective effect of general medical masks on pathogenic microorganisms is wrong. They can be used in general settings for one-time health care or for the barrier or protection of particles other than pathogenic microorganisms such as pollen.
ULTRASONIC AND SPARE PARTS
Overview

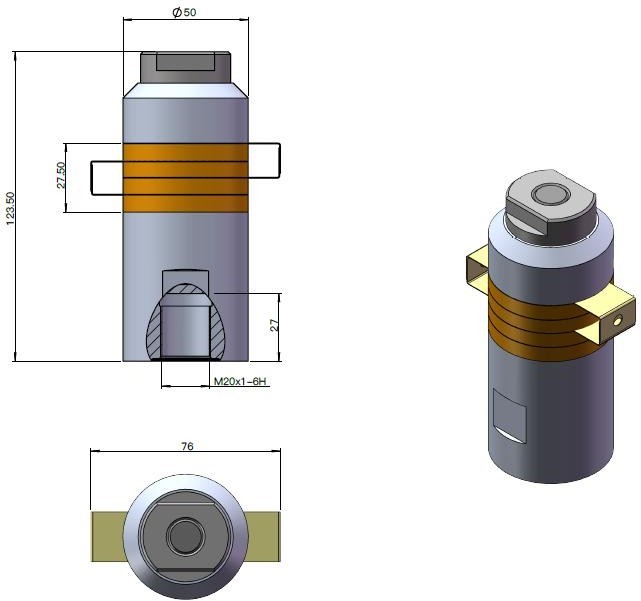

Ultrasonic transducer is the core device that converts electrical energy into mechanical energy (ultrasonic), Adopting high quality piezo ceramic from well-know supplier and strict quality inspections, can give a strong and stable ultrasonic output. The frequency is mainly 20kHz, we can provide booster and sonotrode together as your needs.
It is drove by Clangsonic digital YLT ultrasonic generator which is adopting advanced IGBT Full Bridge Phase Shift technology and features in automatic frequency tracking and constant amplitude output etc which can achieve accurate resonant frequency and energy output. It can tune itself to fit to transducer and sonotrode during working
Main Function:
- Automatic Frequency Tracking
- Constant Amplitude Output
- Amplitude 10-100% Adjustable
- Three Working Modes Choices: External Control/Timing/Energy
- LCD Display To Monitor Working Status
- RS485 MODBUS RTU Communication
- Self Protection, For example Over-Temperature Protection, Over-Current Protection, Over-Voltage Temperature etc
Application
This ultrasonic welding transducers and generator can be used for non-woven bag making machine, paper cup sealing machine, three layers bag making machine, medical cloths making machine, plastic welding machine, plastic bag making machine and mask welding etc
Semi Automatic Ultrasonic Welding Machine

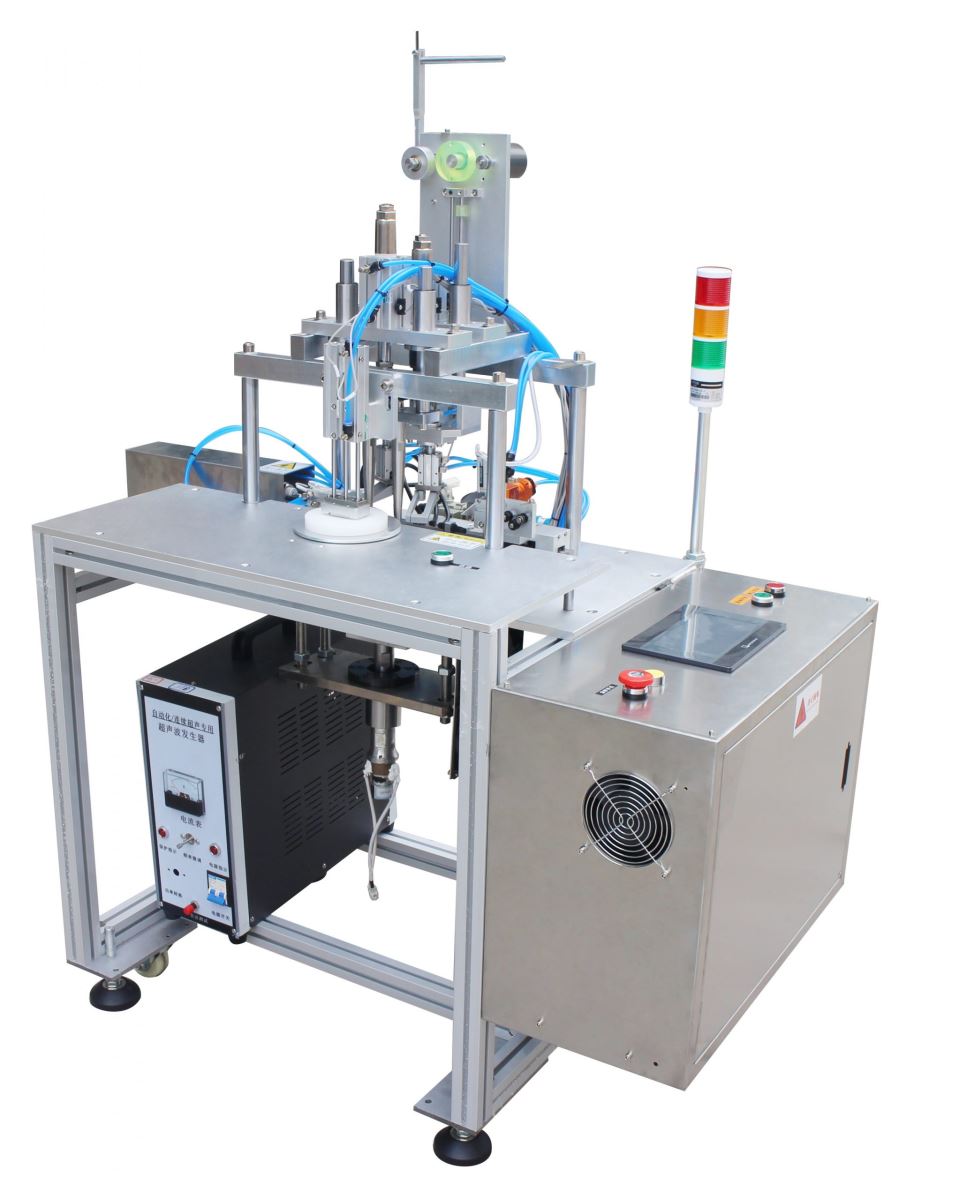

Semi-Automatic Ultrasonic Wire Ear Hanger Welding machine Manual Body is given, first one side, then automatically turn and paste the other side. Body is taken manually and a new one is put. We can import from FANG $ 15,000 from GUANGZHOU in 10-12 Business Days
Fully Automatic Ultrasonic Wire Earhook Welding machine Adheres two ears at the same time It slides out with tape system. Within 10-12 Business Days, we can import from FANG $ 29,000 from GUANGZHOU.
